Viral Industries is a pioneer sluice valve gearbox manufacturer and exporter in the USA, Europe, Canada & Gulf. Our sluice valve gearbox is manufactured using high-quality materials and the latest technology, ensuring that they are built to last and can withstand the toughest conditions. Our team of experienced engineers and technicians is available to provide expert technical support and troubleshooting assistance.
Furthermore, our sluice valve gearbox can deliver torque ranging between 300 Nm - 40000 Nm (221 lbf-ft – 29,502 lbf-ft).
If you are in need of a reliable and efficient sluice valve gear box for your industry, look no further than Viral Industries. Contact us today to know more about our products and services, or to request a quote.
Note: Our manufacturing unit is only in India, but we export sluice valve gearbox to the USA, Europe, Canada, and Gulf.

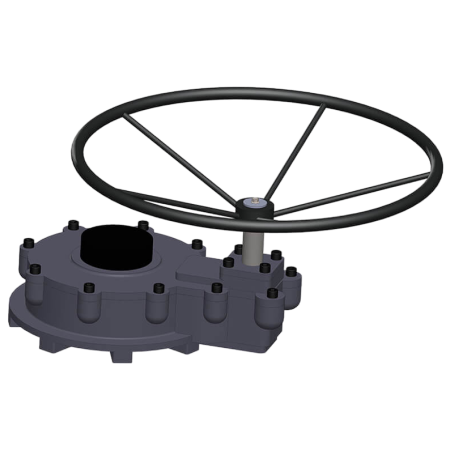

- Sluice Valve Gearbox for Non-Rising Stem (SGB Models for Manual or Hand-Wheel Operation)
| Viral Ind. Model No. | Output Torque Capacity | Gear Ratio | M.A.(±10%) | Hand-Wheel Diameter | Hand-wheel Effort | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nm. | lbf-ft | mm | Inch | lbs | Kilogram | |||||||
| SGB 300 | 300 | 221 | 3:1 | 2.6 | 400 | 16 | 128 | 58 | ||||
| SGB 600 | 600 | 443 | 4:1 | 3.5 | 500 | 20 | 153 | 70 | ||||
| SGB 1000 | 1000 | 738 | 5:1 | 4.4 | 600 | 24 | 170 | 77 | ||||
| SGB 2000 | 2000 | 1475 | 10:1 | 8:1 | 8.8 | 7.0 | 600 | 24 | 170 | 213 | 77 | 97 |
| SGB 3000 | 3000 | 2213 | 10:1 | 8:1 | 8.8 | 7.0 | 600 | 24 | 256 | 320 | 116 | 145 |
| SGB 4500 | 4500 | 3319 | 12:1 | 10:1 | 10.6 | 8.8 | 700 | 28 | 274 | 329 | 124 | 149 |
| SGB 6000 | 6000 | 4425 | 14:1 | 12:1 | 12.3 | 10.6 | 700 | 28 | 313 | 365 | 142 | 166 |
| SGB 10000 | 10000 | 7376 | 19:1 | 16:1 | 16.7 | 14.1 | 1000 | 40 | 269 | 320 | 122 | 145 |
| SGB 20000 | 20000 | 14751 | 24:1 | 20:1 | 21.1 | 17.6 | 1000 | 40 | 426 | 511 | 193 | 232 |
| SGB 40000 | 40000 | 29502 | 30:1 | 24:1 | 26.4 | 21.1 | 1000 | 40 | 682 | 852 | 309 | 387 |
REQUEST A QUOTE
- Sluice Valve Gearbox For Non-Rising Stem (SGBE Models for Actuator Operation)
| Viral Ind. Model No. | Output Torque Capacity | Gear Ratio | M.A.(±10%) | Input Torque Capacity | Mounting Flange at Actuator Side (ISO 5210) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nm. | lbf-ft | Nm. | Inch | ||||||||
| SGBE 300 | 300 | 221 | 3:1 | 2.6 | 114 | 84 | F10, F14 | ||||
| SGBE 600 | 600 | 443 | 4:1 | 3.5 | 170 | 126 | F10, F14 | ||||
| SGBE 1000 | 1000 | 738 | 5:1 | 4.4 | 227 | 168 | F14 | ||||
| SGBE 2000 | 2000 | 1475 | 10:1 | 8:1 | 8.8 | 7.0 | 227 | 284 | 168 | 210 | F14, F16 |
| SGBE 3000 | 3000 | 2213 | 10:1 | 8:1 | 8.8 | 7.0 | 341 | 426 | 251 | 314 | F14, F16 |
| SGBE 4500 | 4500 | 3319 | 12:1 | 10:1 | 10.6 | 8.8 | 426 | 511 | 314 | 377 | F14, F16 |
| SGBE 6000 | 6000 | 4425 | 14:1 | 12:1 | 12.3 | 10.6 | 487 | 568 | 359 | 419 | F14, F16 |
| SGBE 10000 | 10000 | 7376 | 19:1 | 16:1 | 16.7 | 14.1 | 598 | 710 | 441 | 524 | F16, F25 |
| SGBE 20000 | 20000 | 14751 | 24:1 | 20:1 | 21.1 | 17.6 | 947 | 1136 | 698 | 838 | F16, F25 |
| SGBE 40000 | 40000 | 29502 | 30:1 | 24:1 | 26.4 | 21.1 | 1515 | 1894 | 1118 | 1397 | F25, F30 |
REQUEST A QUOTE

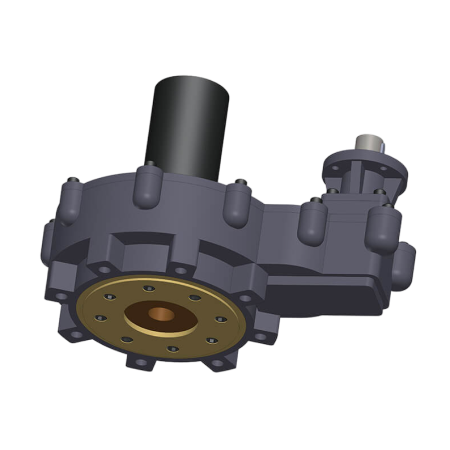

- Sluice Valve Gearbox for Rising Type Stem
| Viral Ind. Model No. | Rising Type Stem Thrust (kN.) |
|---|---|
| SGB 300 / SGBE 300 | 90 |
| SGB 600 / SGBE 600 | 154 |
| SGB 1000 / SGBE 1000 | 245 |
| SGB 2000 / SGBE 2000 | 276 |
| SGB 3000 / SGBE 3000 | 610 |
| SGB 4500 / SGBE 4500 | 950 |
| SGB 6000 / SGBE 6000 | 1155 |
| SGB 10000 / SGBE 10000 | 1420 |
| SGB 20000 / SGBE 20000 | 2280 |
| SGB 40000 / SGBE 40000 | 4800 |
Features and Benefits:
- Useful for rising stem (gate, globe, check valve).
- Removavle adopter sleeve (stem nut) of alluminum bronze.
- Able to take thrust as mention in the table.
- Useful for burried application.
- Top mounted hand-wheel.
- Convertible for actuator operation.
- Clock-wise input will give clock-wise output.
REQUEST A QUOTE

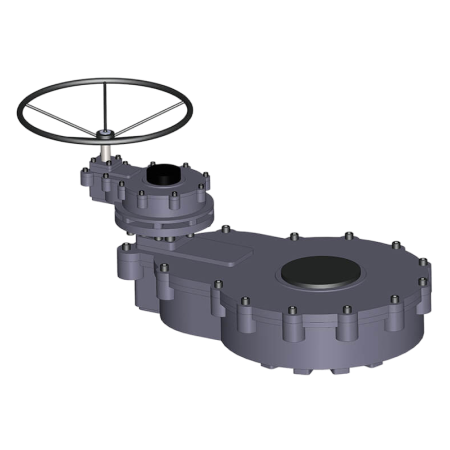

- Customised Sluice Valve Gearbox with Higher Ratio
REQUEST A QUOTE
Valve Mounting Detail
| Viral Ind. Model No. | Valve Side Mounting Flange (ISO 5210) | Max. Spindle (Stem) Diameter (mm) |
|---|---|---|
| SGB 300 / SGBE 300 | F10, F12 | 30 |
| SGB 600 / SGBE 600 | F12, F14 | 40 |
| SGB 1000 / SGBE 1000 | F16, F25 | 50 |
| SGB 2000 / SGBE 2000 | F25, F30 | 80 |
| SGB 3000 / SGBE 3000 | F25, F30 | 90 |
| SGB 4500 / SGBE 4500 | F30, F35 | 100 |
| SGB 6000 / SGBE 6000 | F30, F35 | 120 |
| SGB 10000 / SGBE 10000 | F30, F35, F40 | 125 |
| SGB 20000 / SGBE 20000 | F35, F40, F48 | 150 |
| SGB 40000 / SGBE 40000 | F40, F48, F60 | 190 |
Features:
- Clockwise rotation of input will give clockwise rotation of output.
- Bearings supported assembly.
- Suitable for Actuator operation.
- Removable stem sleeve.
- Grease Lubricant Gearbox.
- Higher ratio options to reduce effort.
- Available for marine application.
- Suitable for buried application.
Enclosure:
- IP-65 ,IP-67, IP-68
Temperature Limit:
- Normal application -20ËšC To 120ËšC
- High temperature application up to 150ËšC
- Low temperature application up to -50ËšC
Material Options for Stem sleeve:
- AB-2, Ni-D2, S.G.Iron, Manganese Bronze
